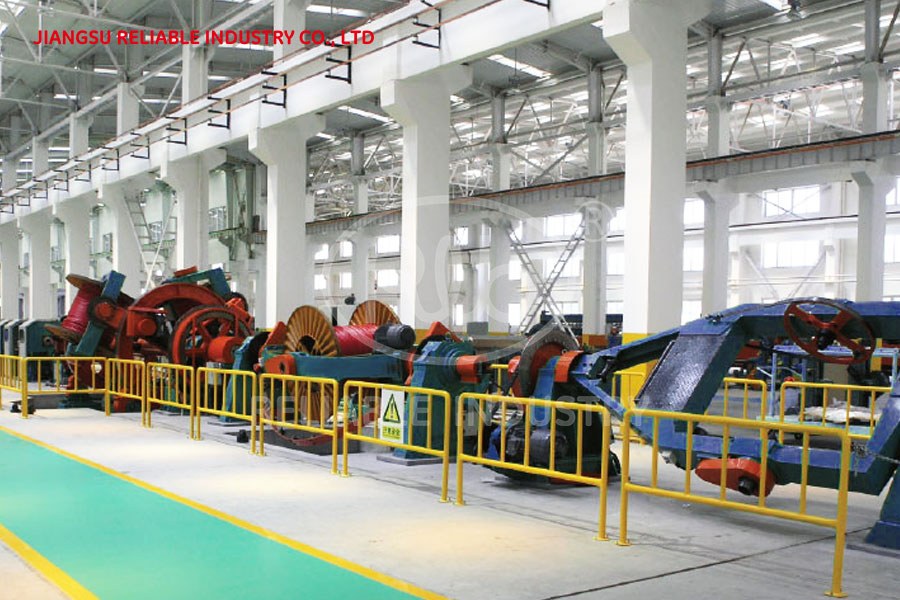

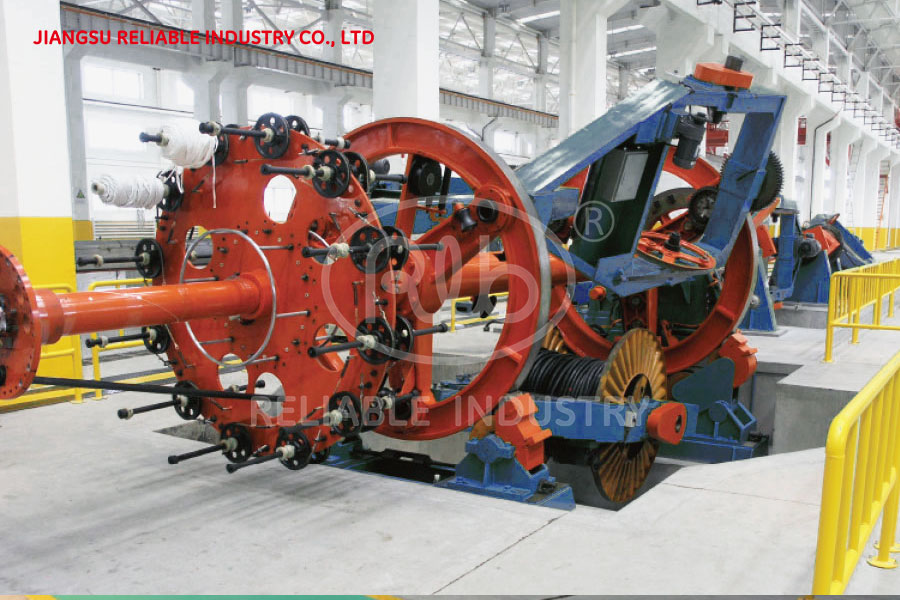

The cage type cable laying-up machine is 100% back twisted and stranded.
Designed for laying up power conductors with 3-5 round cores and straight or sector shape cores.
Equipped with dual wheel pulling capstan when running small size cables or with haul off caterpillar for bigger power cables.
The machine is provided with HMI+PLC control system for pre-setting laying up pitch and for speed synchronization with the take up.
Optionally maximum of 24 pieces of filling bobbins.

-
