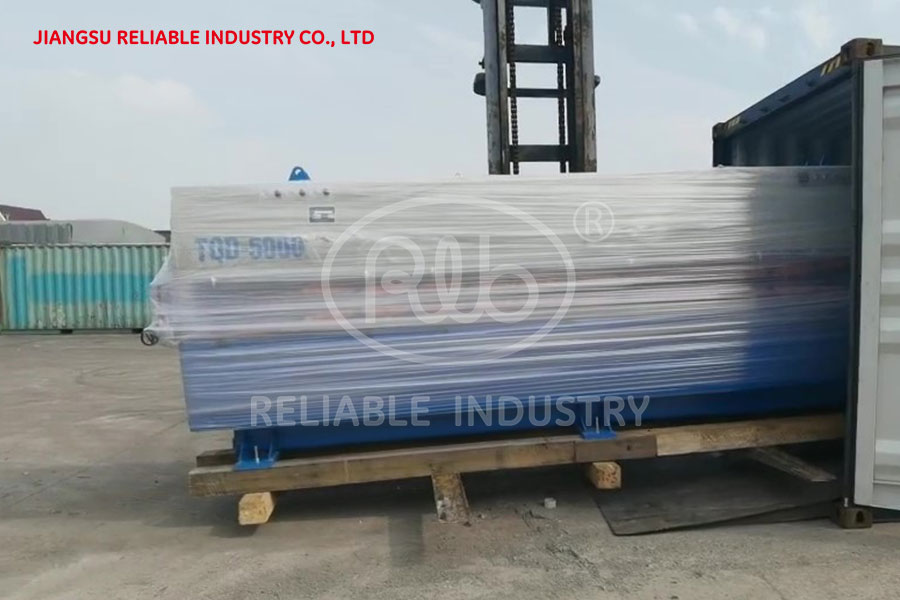

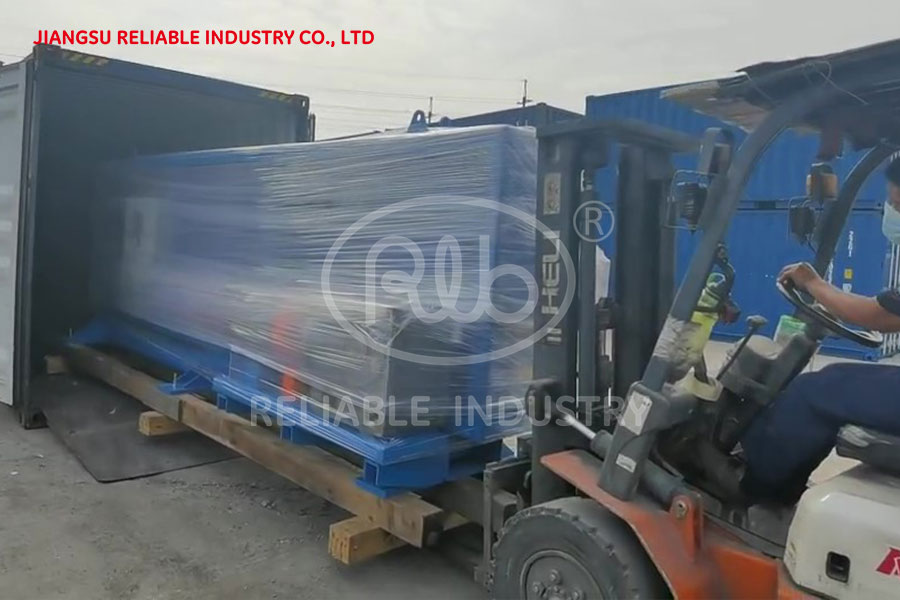

Caterpillar Haul-Off Unit
Jun 03, 2021|
View:1070Application
This machine is mainly used for the traction of all kinds of cables. It is the most ideal traction equipment for all kinds of extruders, armoring machine and shielding machine etc.
Main specifications
Model (TQD-) | 500 | 800 | 1250 | 1600 | 2000 | 2500 | 3200 |
Wire O.D | Φ1-30 | Φ5-40 | Φ5-60 | Φ5-80 | Φ5-100 | Φ5-120 | Φ1-150 |
Max.traction force(kg) | 500 | 800 | 1250 | 1600 | 2000 | 2500 | 3200 |
Traction speed(m/m) | 0-110 | 0-110 | 0-100 | 0-80 | 0-80 | 0-60 | 0-50 |
Caterpillar band contact length(mm) | 750 | 1300 | 1600 | 1900 | 2300 | 2300 | 2600 |
Caterpillar band length(mm) | 80 | 100 | 120 | 130 | 150 | 150 | 160 |
Wire central height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
No. Pair of cylinder | 3 | 4 | 5 | 6 | 7 | 7 | 8 |
Motor power(kw) | 5.5 | 5.5 | 7.5 | 11 | 15 | 15 | 18.5 |
-
