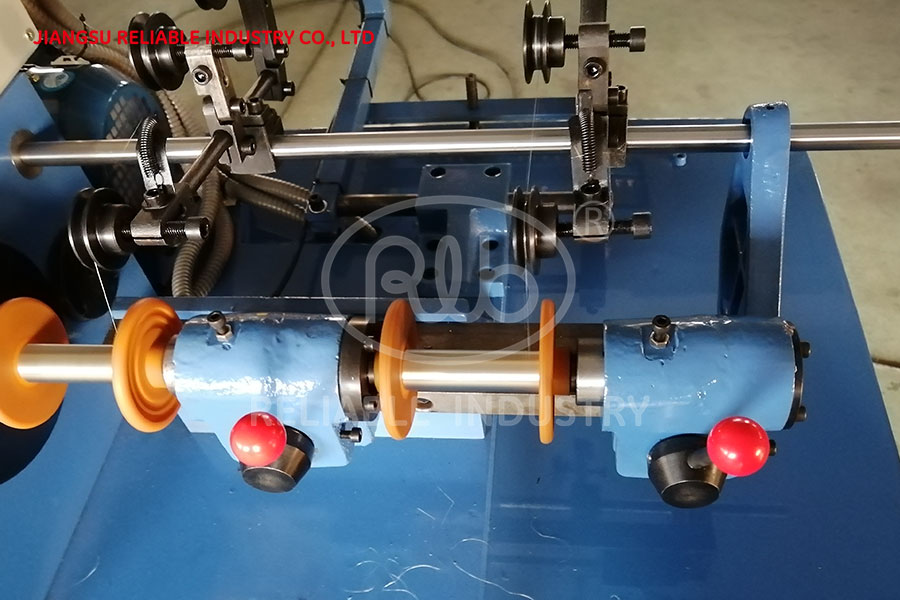

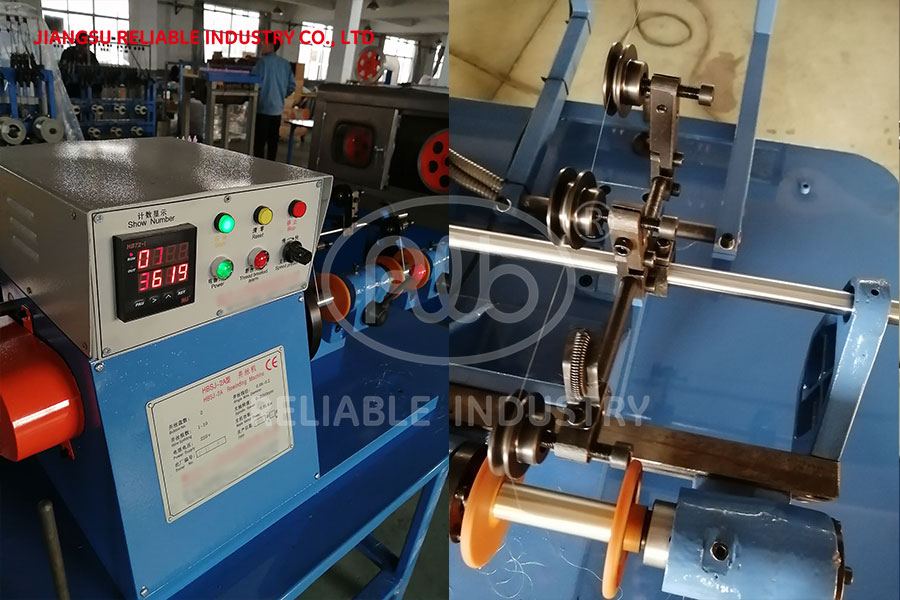

HBSJ-2A BUNCHING MACHINE (Dual Head)
 Jun 22, 2021|View:768

Item

Name

Unit

Technical Specification

1

Bunching head

Head

Dual heads ( pintle type)

2

Rotating speed of main shaft

RPM

0-2400

3

Diameter of wires

mm

0.05-0.30

4

Numbers of wires


1-12 wires (equipped with 24 pcs of wires broken detector.)

5

Motor type


Y90S-4 (1 SET)

Power & Frequency


0.75KW, 50Hz

Rotating speed

RPM

1400

6

Max diameter of payoff drum

mm

250 (Payoff stand has 24 pcs heads, with tension control.)

7

Noisy (1m downside from machine)

db

Max 70

8

Machine dimension

mm

1400 x 997 x 1143

9

Machine weight

KG

Main machine weight: 120kg

24 heads payoff weight: 180 kgs

10

Wire broken detector


Contact short circuit alarm; equipped on payoff device and take up device.

11

Electrical control


0.75KW DELTA DRIVE, Schneider button,

HP72 counter device: 1 pc
