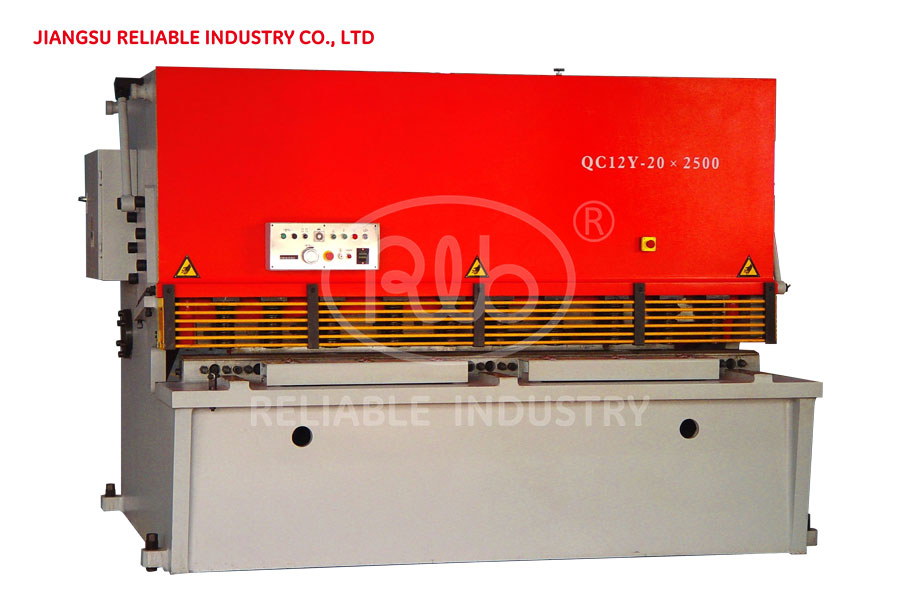

Technical Parameters of Hydraulic Shear
 Aug 05, 2021|View:829

Maximum cutting thickness: 20mm

Strength of plate: 450N/m m2

Maximum cutting width: 2500mm

Cutting angle: 2° 30'

Number of strokes: 5 Min'

Column spacing: 2820mm

Max distance between backgauge and blade: 100mm

Length of blade: 2600mm

Height of worktable: 935mm

Main motor model: Y250-4 B5

Main motor power: 30kW

Main motor rotation Speed: 1480r/min

Motor model of backgauge: Y90L-6B3

Motor power of backgauge: 1.1kW

Motor rotation speed of backgauge: 910r/min

Axial plunger pump Model: NT4-G63F

Axial plunger pump Flux: 63ml/r

Axial plunger pump Pressure: 32MPa

Overall dimension: 3370mmx2545mmx2250mm(L X WX H)

Weight: 22500kg
