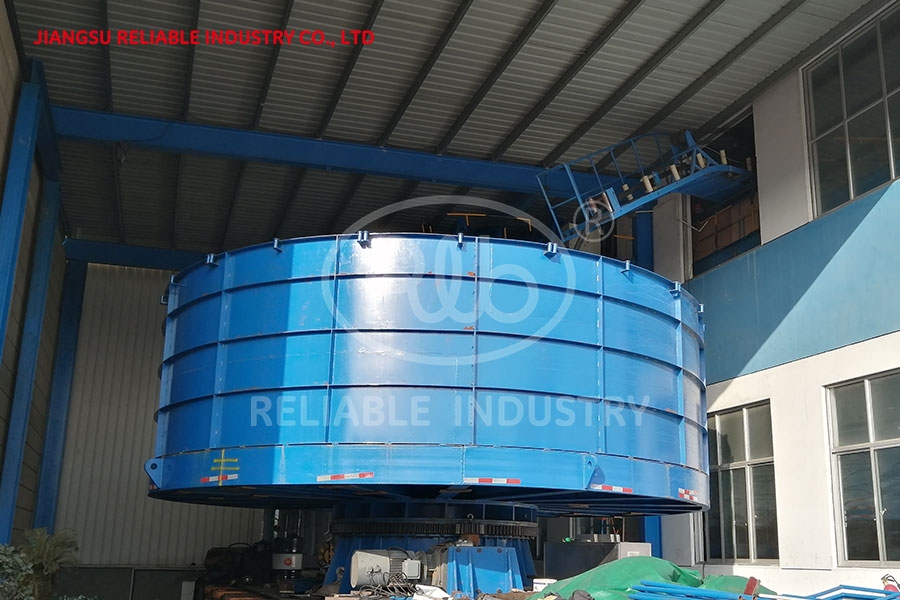

Φ8000mm Dismountable Ground Turntable Pay Off/Take Up
 Sep 15, 2021|View:25

Application

It is mainly used for pay off or take up of large section and long power cables。

The upper 8m tray and bottom support of the machine can be driven separately. The 8m tray can be lifted and transported on a flat truck under the load of 150T.

Technical parameter

● Cable diameter:Ф20~Ф120mm

Inner barrel diameter of turntable:Ф3000mm

Coil OD of turntable:Ф8000mm

Coil height of turntable:3000mm

Pay off/take up speed(Max.):38m/min

Turntable rotating speed(Max.): 4rpm

Max load of turntable:200t
