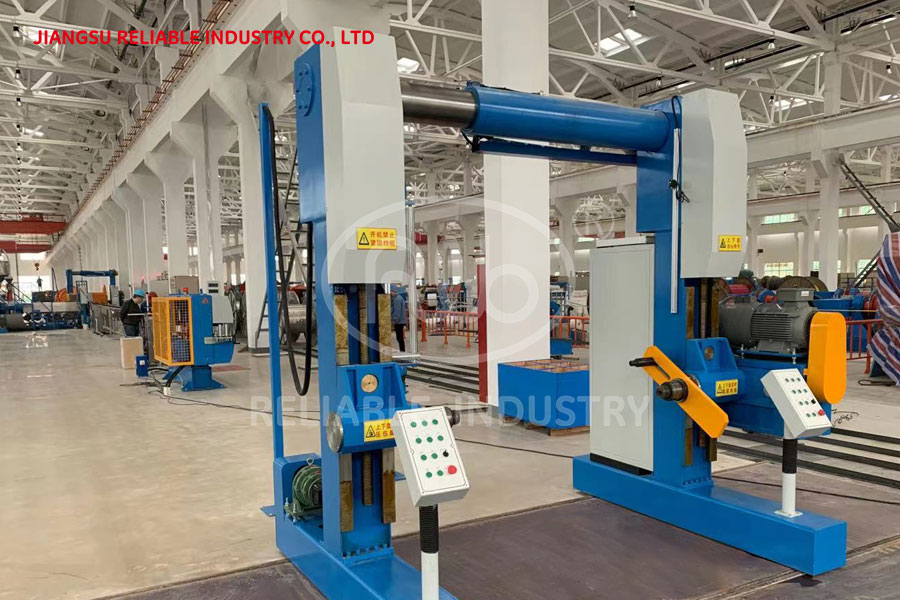

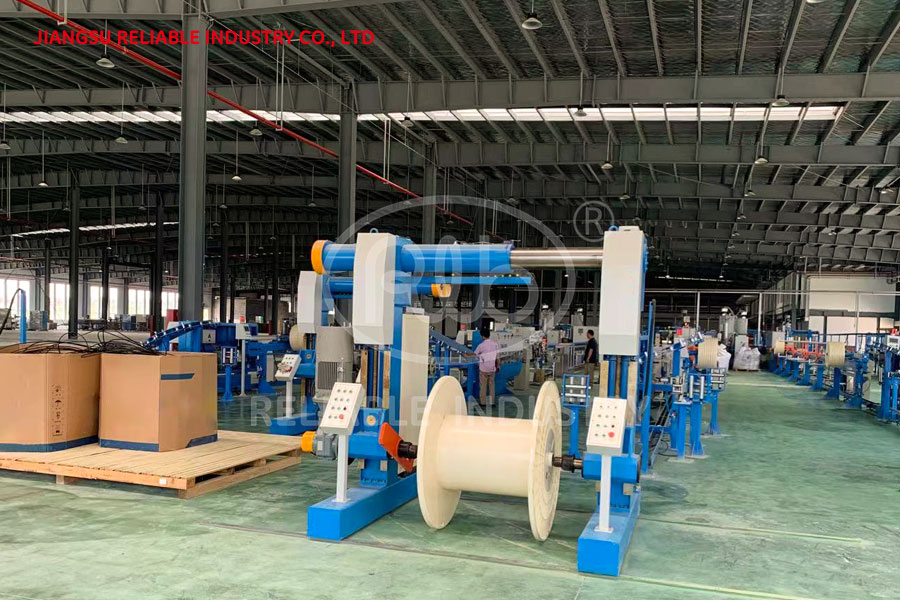

Gantry Type Take-Up And Pay-Off Stand Unit
Sep 29, 2021|View:835
Bobbin diameter: Φ1200~Φ2000mm
Bobbin width: 950-1500mm
Applicable bobbin weight: 4T
Take-up speed: 90m/min (Max)
Applicable cable diameter: ≤Φ40mm
Take-up motor: AC-11kw Siemens AC variable frequency motor
Take-up controller: Danfoss series controller
Traversing motor: 1kw Mitsubishi servo motor
Traversing controller: Mitsubishi servo controller
Lifting motor: 1.1kw (AC 2 units) + cycloid reducer
Clamping motor: 1.1kw 960rpm (AC)
PLC: Siemens S7-1200
Traversing control: 7-inch touch screen
-
