Description:

☀ Production line is mainly used in the high tensile conductive rod production of 9.5MM, 12.5MM, 15MM aluminum and aluminum alloy（EC1350、Series No 3#（3004、3102）, 5#（5005、5154）, （6101/6201）、and Series No. 8 (8176, 8030), etc. The technology of the Line can meet the standard of European and American.

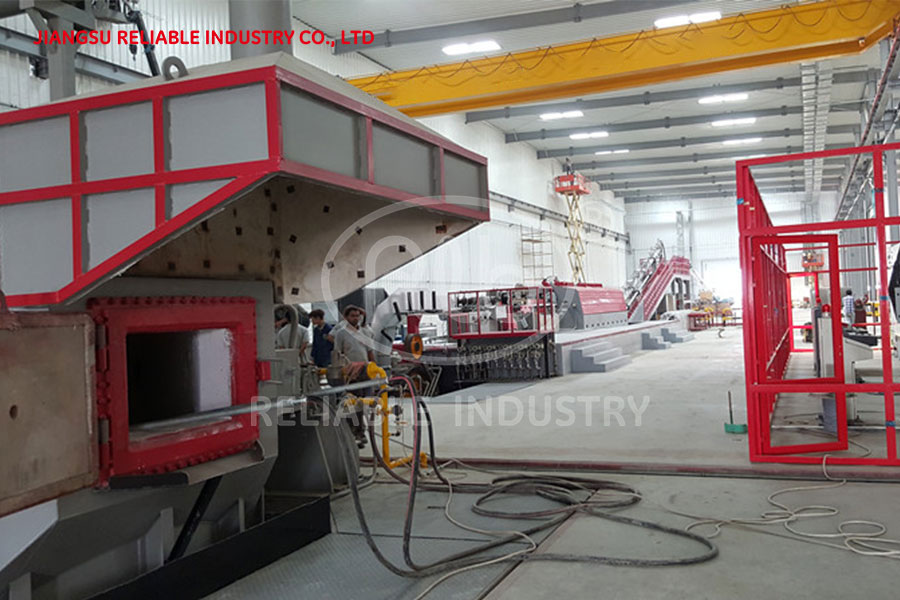

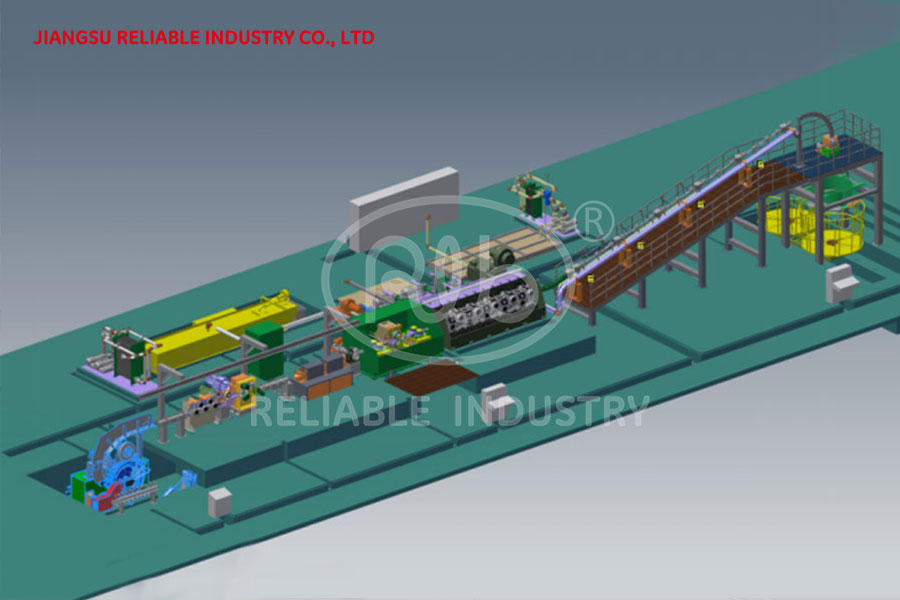

☀ The production line is composed by the melting furnace, holding furnaces, four wheel continuous casting machine, straightening machine, front traction, rolling shear machine, medium-frequency heating furnace, feeding machine, continuous mill machine, cooling system, take-up rod device and electrical control system.

☀ The crystallization wheel adopts H-type structure, all sides cooling and the ingot casting is dense and uniform.

☀ There are three kinds of combination forms of two rollers type, three rollers type and two rollers + three rollers type for customers to choose.

☀ Provide the production line which output is 4.5 tons, or 7.5 tons per hour.

☀ The whole production line adopts IPC+HMI+PLC control with auto synchronization, secure storage of process data and real time display of operating condition.

-
