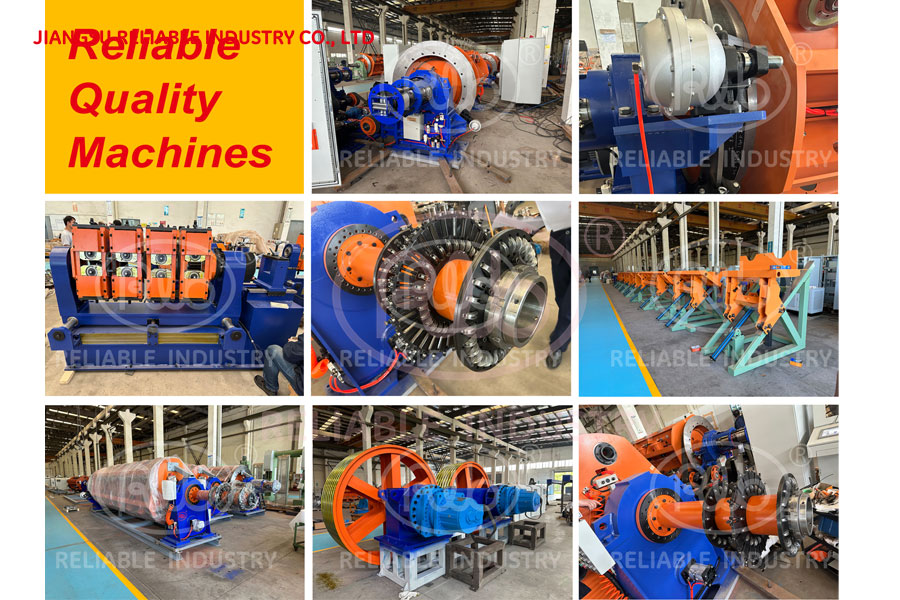

RELIABLE High Quality Rigid Stranding Machines Up to 127 Wires
 May 22, 2023|View:269

For copper, aluminum & steel wires.

Rigid type stranding machine working without back twist movement. Each cage is equipped with a multi-bobbin auto-loading carrier This machine series is designed to work with round, straight sector or prespiral sector cables of 19 / 37 / 61 / 91/127 copper and aluminum conductors as well as for armouring insulated cables with galvanized steel wires.

Wire tension control is made by pneumatic disk brakes. Alternatively when using the machine for laying up control cables we can apply hysteresis brakes.

The transmission of the cages can be done by one single DC motor connected to the cages through a counter shaft or optionally can be run with multi motored drives, having each cage its own AC servomotor

The machine is provided with HMI +PLC control system for pre-setting stranding pitch, twist direction, automatic tension compensation control, and for speed synchronization with the pulling capstan and take up unit.
