Modern smart automation solves the core conflict between processing output and product quality in wire and cable manufacturing. Advanced sensors, closed-loop telemetry, and dynamic thermal control in a modern cable extrusion machine adjust parameters instantly. Plant managers maximize overall efficiency and cut material scrap during cable insulation extrusion. Automated systems maintain strict physical dimensions and electrical standards continuously.

High-stability PVC compounds enable a 20–30% higher throughput capability while maintaining insulation quality, as evidenced by reduced scrap rates (<1.5%) and consistent surface finish.

This smart extrusion technology delivers supreme operational stability along the full cable extrusion line. Cable engineers achieve high production speed effortlessly.

Key Takeaways

• Smart cable extrusion machines can go very fast, reaching up to 1,200 meters per minute.

• Smart temperature tools and water cooling stop the material from breaking and keep the cable straight.

• Smart ultrasonic sensors measure cable thickness all the time to catch and prevent product mistakes quickly.

• Connected factory machines reduce lost raw materials and lower total manufacturing costs.

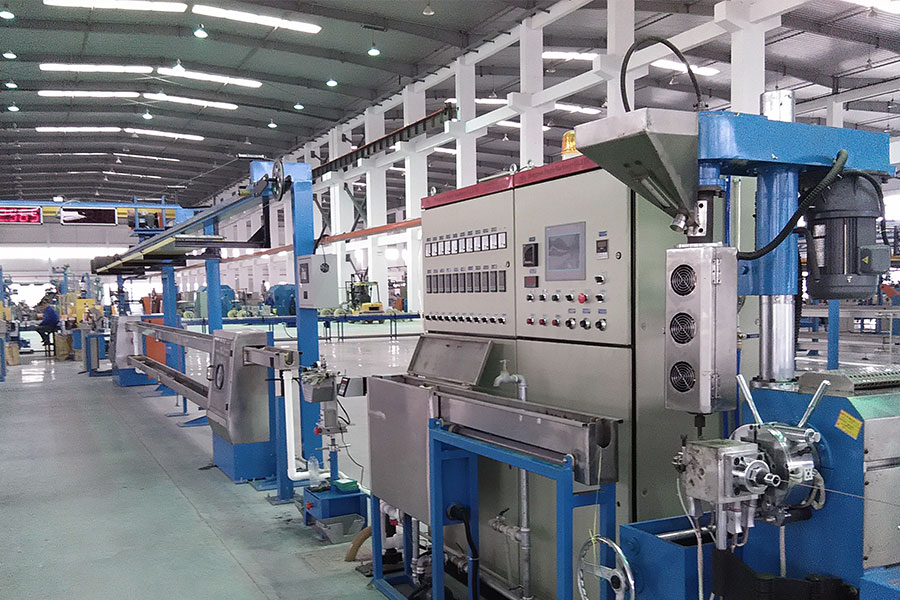

Optimizing High-Speed Cable Extrusion Line Performance

Modern automated single-layer extrusion lines reach fast processing speeds of 800 to 1,200 m/min for thin conductors under 2.5 mm². Operators trust modern extrusion technology to protect product strength during fast production runs along the cable extrusion line. Fast manufacturing requires accurate automated control to prevent material flaws and size shifts. Smart factory control systems constantly check changing conditions during non-stop, high-speed industrial production. This constant checking ensures long-term cable performance and keeps product quality high during tough work cycles. Using smart extrusion technology helps modern factories meet strict sales goals while keeping processing efficiency at its best.

Precise Thermal Controls in Cable Extrusion Machine Systems

Automated screw temperature control is very important when pushing raw polymer compounds to their highest output limits. Moving materials too fast creates extra shear heat inside the extruding barrel. Too much heat causes breakdown, damages raw polymer compounds, and hurts overall cable performance. Modern cable extrusion machine systems use multi-zone thermal control to fight inner heat spikes immediately. Automatic thermal sensors adjust heater elements and active cooling jackets along the barrel section by section. This tight temperature control protects custom cable extrusion work from material scorching, tiny air pockets, or polymer damage. Steady melt temperatures keep the main physical traits of the plastic outer layer safe during fast runs. In addition, high-precision thermal balancing improves custom cable extrusion stability during complex manufacturing steps. Good melt management ensures smooth polymer surfaces, safe insulation, and ideal material flow. As a result, high-speed cable insulation extrusion runs smoothly without sudden heat damage or costly downtime.

Efficient Cooling Systems to Prevent High-Speed Deformation

Smart cooling systems inside the cable extrusion line stop shape damage and keep structural strength high during fast line speeds. Fresh, hot polymer coatings can easily suffer surface flaws, shape changes, and sagging right after leaving the die head. Modern production plants use dynamic cooling technology to set the new polymer insulation layer quickly and well. Advanced sensor-driven cooling troughs set the material shape before downstream pulling equipment pulls on the wire.

• Smart underwater sensors track the cable position continuously, catching any early bending in the structure.

• Controlled water valves change the cooling strength on both sides using PLC signals to fix curves.

• Spring-loaded guide wheels supply centering force for different cable sizes, keeping the core perfectly centered.

• Water baffles and multi-stage cooling tanks raise cooling evenness and speed by guiding water flow and depth.

• Smart PLC controls maintain steady, automatic updates to cooling settings to ensure even cooling and fix heat bending.

Combining dynamic heat control with advanced water cooling systems improves the whole cable extrusion line. Smart feedback loops keep the outer coating layer smooth across high-speed production runs. A well-maintained cable extrusion machine prevents uneven wall thickness, cuts material waste, and keeps product shape steady on finished goods. Plants making top-quality cables rely on new extrusion technology to gain high output while making items for tough global markets. Reliable heat control simplifies complex cable insulation extrusion tasks across modern automated factory setups.

Enhancing Quality Control in Cable Insulation Extrusion

Modern factories prioritize quality control in cable extrusion lines to maintain absolute product stability. Real-time testing tools monitor the core process parameters during rapid production runs. The importance of quality control grows as plants push machinery output to maximum limits. Operators measure processing success through specific key performance indicators.

1. Output rate across high-speed production runs.

2. Product quality including dimensional accuracy and surface finish.

3. Energy consumption during continuous machine operations.

4. Downtime and maintenance requirements for processing equipment.

Automated systems continuously evaluate physical dimensions during full-speed manufacturing operations. Modern factory managers utilize advanced extrusion technology to maintain accurate material flow across every processing stage.

Closed-Loop Monitoring of Wall Thickness and Concentricity

Precise physical measurement forms the foundation of reliable custom cable extrusion processing. Outside diameter readings alone cannot reveal polymer distribution around internal conductors. Modern plants install ultrasonic gauges along the processing line. Ultrasonic sensors provide continuous feedback regarding wall clearance and material symmetry. Uneven polymer placement creates localized thin spots in protective coatings. These thin sections lower electrical breakdown voltage consistency and risk sudden dielectric failure.

Real-time sensors detect dimensional drift instantly. Instant telemetry allows operators to re-center extruding crossheads without stopping operations. Modern smart machinery maintains accurate jacket symmetry based on international standard guidelines like IEC 60227 and BS 6004.

In real-world manufacturing conditions, concentricity values for cable insulation typically range between 70% and 90%. Maintaining higher symmetry protects cable performance over long service lives. Proper material positioning stabilizes electrical parameters during severe field stress. Plant engineers rely on modern extrusion technology to protect sensitive layers during custom cable extrusion manufacturing.

In-Line Flaw Detection for Maximum Insulation Quality

High-speed manufacturing requires rapid flaw detection to safeguard finished wire structures. Smart telemetry scans polymer surfaces during cable insulation extrusion to catch structural defects. Sensors identify pinholes, neckdowns, die lines, surface roughness, lumps, and micro-voids immediately. Catching physical flaws during cable insulation extrusion protects overall cable performance across complex applications.

Smart telemetry works alongside continuous spark testing units to verify protective dielectric strength. Instantaneous alarm triggers notify production teams when unexpected surface defects occur during cable insulation extrusion processing.

In pilot projects, this typically reduces the rework rate by 20 to 40% because production defects are stopped after the first part rather than after the hundredth.

Early defect detection stops flawed product lengths from consuming extra plant resources. Plant managers achieve reliable cable insulation extrusion while drastically cutting final scrap rates. Utilizing modern extrusion technology ensures superior insulation wall structural integrity across every shift. Plants focus on producing high-quality cables by standardizing automated verification across every active extrusion line. Intelligent feedback loops improve overall cable performance while advancing extrusion technology standards. Optimized monitoring ensures maximum quality consistency during demanding cable insulation extrusion production runs.

Maximizing Production ROI with RLB Advanced Extrusion Solutions

Jiangsu Reliable Industry Co., Ltd. (RLB) supplies modern Insulation and Sheath Extrusion Production machinery to plants worldwide. Factory owners pick RLB equipment to boost overall speed while protecting total product standards continuously.

Synchronized Multi-Layer Co-Extrusion Machinery

RLB builds specialized extrusion equipment designed specifically for modern factory setups. Their catalog features Building Wire Extrusion setups alongside Three-Layer Co-Extrusion Dry Cross-linking units. Dry nitrogen gas replaces older steam processes to cure materials without added humidity. This dry curing step stops tiny moisture bubbles and water trees from spoiling parts. The smooth process reaches consistent chemical bonding at active rates up to 15 m/min. Machine users depend on these high-tech tools to push line throughput higher safely.

Combining multiple material layers brings major mechanical and financial perks to factories:

• Layered manufacturing creates strong insulation, solid outer strength, and high heat safety all at once.

• Combining materials together cuts total raw polymer waste during long production runs.

A smart extrusion setup shields sensitive plastic compounds against harmful heat breakdown. Production crews handle custom manufacturing jobs using tight heat controls for balanced runs.

Reducing Material Scrap via Integrated RLB Automation

Built-in RLB automation keeps plastic flow steady throughout continuous cable insulation extrusion operations. Smart sensors watch liquid melt temperatures down every active extrusion line carefully. The setup manages plastic usage wisely while improving total plant power efficiency significantly. This constant checking stops raw compound loss during daily cable insulation extrusion tasks. Therefore, plants meet strict standards without spending extra money on raw materials.

RLB builds modern extrusion equipment using smart closed-loop control systems. These high-tech machines fix settings automatically to keep outer jacket thickness totally even. Fast data updates boost overall cable performance across quick high-speed runs.

Engineers pick updated extrusion tools to make tough custom cable jobs much easier. Smart automated controls keep tight shape balance while building strong long-term wire strength. This modern manufacturing approach guarantees full quality compliance for tough commercial targets. As a result, factories make top-grade wire successfully while cutting extra scrap costs. Investing in RLB tools helps plants build trustworthy products on every active line.

Modern cable extrusion machine setups revolutionize wire and cable manufacturing by combining high output speeds up to 1,200 m/min with uniform layer concentricity. Advanced smart melt management and closed-loop telemetry boost bottom-line efficiency across every active cable extrusion line. Intelligent sensors prevent structural defects during high-speed cable insulation extrusion, ensuring flawless dimensional consistency.

Upgrading to smart extrusion technology stabilizes overall cable performance and guarantees long-term product quality.

Cable manufacturers must adopt next-generation extrusion technology to stay competitive. Jiangsu Reliable Industry Co., Ltd. (RLB) drives continuous innovation in custom cable extrusion machinery. RLB offers full technical assistance to help plants produce high-quality cables consistently.

FAQ

What line speeds can automated cable extrusion machinery reach?

Automated single-layer cable extrusion machinery reaches output rates between 800 and 1,200 m/min for conductor strands under 2.5 mm². Smart thermal sensors protect vital cable parameters during fast manufacturing runs. Dynamic water cooling prevents outer cable coating deformation at high cable processing speeds.

How does smart monitoring guarantee cable concentricity standards?

Ultrasonic sensors scan physical dimensions along the active cable line continuously. Closed-loop controls adjust crossheads immediately after catching dimensional drift in the cable layer. This continuous checking maintains core cable symmetry according to international standards like IEC 60227 and BS 6004.

Why do plants prefer dry cross-linking cable extrusion lines?

Dry cross-linking cable extrusion lines utilize dry nitrogen gas instead of humid steam to cure polymer insulation. This efficient curing method runs at speeds up to 15 m/min. Eliminating steam moisture stops micro-voids inside the insulation layer, maximizing electrical cable reliability across utility networks.

How does integrated RLB automation cut cable manufacturing scrap?

Smart sensors monitor polymer melt temperatures down the active cable line. Dynamic feedback loops adjust outer cable jacket thickness automatically during continuous processing. Early flaw detection units catch defects instantly, allowing cable plant operators to stop damaged cable production and cut raw material scrap.
